Storefront Glass Installation – Union, NJ (Restaurant)

We fabricated and installed a 21-panel storefront glass system for Tropical Juice Bar in Union, NJ. Insulated tempered glass with aluminum framing creates a modern, welcoming look. Two single doors and a double entry provide seamless access. Completed in phases with minimal disruption to business. See full scope, glass specs, and project cost breakdown.

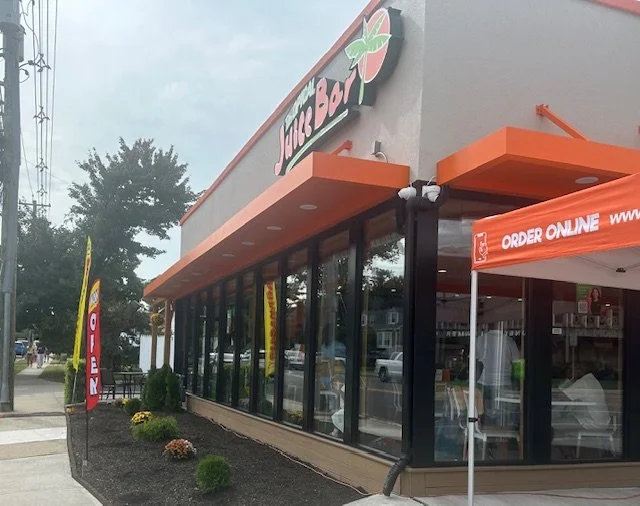

Storefront insulated glass system with aluminum framing in Union, NJ for restaurant installation

Tropical Juice Bar in Union, NJ hired us to upgrade their entire storefront with a clean, modern insulated glass system. The installation included 21 fixed IGU windows, one double aluminum-frame door, and two single entry doors. Each panel measures 42"x96" and is built with 1" insulated tempered glass for enhanced safety and efficiency. Matte-finished aluminum extrusions and capped steel columns give a seamless, cohesive look. The phased install allowed the restaurant to remain open throughout, with the entire scope completed within budget and timeline.

System, 4-½” x 2” extrusions

  1. Glass Type: 1" insulated unit (1/4" tempered over 1/4" tempered)

  2. Doors:

    • 1x Double narrow stile door

    • 2x Single narrow stile doors

  3. Hardware:

    • Mortise lock

    • Grade 1 #4 closer

    • ½" x 4-½" threshold

  4. Finish: Matte black

  5. Acoustics: Moderate STC from IGU

  6. Safety: All tempered glass
